signs.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	signs (badpts, npts, iscr, jscr, idim, jdim, ist, iend,
	Compute signatures of a rectangle Signature is defined as number of flagged cells in each row/column. More...

Function/Subroutine Documentation

signs()

subroutine signs	(	dimension(2,npts)	badpts,
			npts,
		dimension(idim)	iscr,
		dimension(jdim)	jscr,
			idim,
			jdim,
			ist,
			iend
	)

Compute signatures of a rectangle Signature is defined as number of flagged cells in each row/column.

Also return first and last nonzero row/column (in ilo, ihi, jlo, jhi), so don't have to waste time over entire region.

Parameters

[out]	ilo	first nonzero row
[out]	ihi	last nonzero row
[out]	jlo	first nonzero column
[out]	jhi	last nonzero column
[out]	iscr	horizontal signature, as a function of i
[out]	jscr	vertical signature, as a function of j

Definition at line 17 of file signs.f.

Referenced by smartbis().

     &                  ilo,ihi,jlo,jhi)
c
       implicit double precision (a-h,o-z)
       dimension badpts(2,npts)
       ! TODO: can iscr use an array, say ihi-ilo?
       dimension iscr(idim), jscr(jdim)
c
c
       ilo= 1
       ihi= idim
       jlo= 1
       jhi= jdim
       do 10 i = 1, idim
 10       iscr(i) = 0
       do 15 j = 1, jdim
 15       jscr(j) = 0
c
c count all flagged points in a given row/column in one pass through
c the points, i.e. a bin count
c
       do 20 ipt = ist, iend
          iloc  =  badpts(1,ipt)+1.1
          jloc  =  badpts(2,ipt)+1.1
          iscr(iloc) = iscr(iloc)+1
          jscr(jloc) = jscr(jloc)+1
 20    continue
c
       do 30 ipt = 1, idim
         if (iscr(ipt) .ne. 0) then
            ilo = ipt
            go to 40
         endif
 30    continue
 40    do 50 ipt = 1, idim
          if (iscr(idim+1-ipt) .ne. 0) then
             ihi = idim+1-ipt
             go to 60
          endif
 50    continue

 60    do 70 ipt = 1, jdim
          if (jscr(ipt) .ne. 0) then
             jlo = ipt
             go to 80
          endif
 70    continue
 80    do 90 ipt = 1, jdim
          if (jscr(jdim+1-ipt) .ne. 0) then
             jhi = jdim+1-ipt
             go to 99
          endif
 90    continue

 99    return

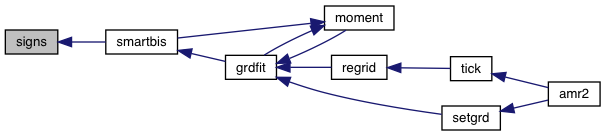

Here is the caller graph for this function:
