birect.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	birect (mptr1)
	Check each grid, starting with mptr1 (either newstl or lstart) to see that it has no more than max1d points in either dimensions. More...

Function/Subroutine Documentation

birect()

subroutine birect

(

mptr1

)

Check each grid, starting with mptr1 (either newstl or lstart) to see that it has no more than max1d points in either dimensions.

needed so that scratch array space in stepgrid not exceeded.

Also check for too small grids - but has never happened.

Definition at line 11 of file birect.f.

References amr_module::cornxhi, amr_module::cornxlo, amr_module::cornyhi, amr_module::cornylo, amr_module::hxposs, amr_module::hyposs, amr_module::intratx, amr_module::intraty, amr_module::levelptr, amr_module::max1d, amr_module::ndihi, amr_module::ndilo, amr_module::ndjhi, amr_module::ndjlo, amr_module::nestlevel, amr_module::nghost, amr_module::node, nodget(), amr_module::rnode, and amr_module::timemult.

Referenced by domain(), and grdfit().

c
      use amr_module
      implicit double precision (a-h,o-z)


c
c :::::::::::::  BIRECT :::::::::::::::::::::::::::::::::::::::
c check each grid, starting with mptr1 (either newstl or lstart)
c to see that it has no more than max1d points in either dimensions.
c needed so that scratch array space in stepgrid not exceeded.
c
c also check for too small grids - but has never happened.
c :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
c
      mptr  = mptr1
      level = node(nestlevel,mptr)
      hx    = hxposs(level)
      hy    = hyposs(level)
c
10    continue
      cxlo    = rnode(cornxlo,mptr)
      cxhi    = rnode(cornxhi,mptr)
      cylo    = rnode(cornylo,mptr)
      cyhi    = rnode(cornyhi,mptr)
      nx      = node(ndihi,mptr) - node(ndilo,mptr) + 1
      ny      = node(ndjhi,mptr) - node(ndjlo,mptr) + 1
      minsize = 2*nghost
c
c check number of rows first - if too many, bisect grid with vertical
c line down the middle. make sure new grid corners are anchored
c on coarse grid point. make sure if bisecting coarse grid that
c new grids have even number of points
c
      if (nx + 2*nghost .gt. max1d) then

        nxl    = nx/2
        if (level .gt. 1) then
           lratio = intratx(level-1)
        else
           lratio = 2
        endif
        nxl = (nxl/lratio)*lratio
        nxr    = nx - nxl
        cxmid  = cxlo + nxl*hx

        mptrnx = nodget()
        node(levelptr,mptrnx) = node(levelptr,mptr)
        node(levelptr,mptr)   = mptrnx

        rnode(cornxhi,mptr) = cxmid
        node(ndihi,mptrnx)  = node(ndihi,mptr)
        node(ndihi,mptr)    = node(ndilo,mptr) + nxl - 1
        node(ndilo,mptrnx)  = node(ndihi,mptr) + 1
        node(ndjhi,mptrnx)  = node(ndjhi,mptr)
        node(ndjlo,mptrnx)  = node(ndjlo,mptr)

        rnode(cornxlo,mptrnx)    = cxmid
        rnode(cornylo,mptrnx)    = cylo
        rnode(cornyhi,mptrnx)    = cyhi
        rnode(cornxhi,mptrnx)    = cxhi
        rnode(timemult,mptrnx)   = rnode(timemult,mptr)
        node(nestlevel,mptrnx)   = node(nestlevel,mptr)

        go to 10
c
c check number of columns next - if too many, bisect grid with horizontal
c line down the middle
c
      else if (ny + 2*nghost .gt. max1d) then

        nyl    = ny/2
        if (level .gt. 1) then
           lratio = intraty(level-1)
        else
           lratio = 2
        endif
        nyl = (nyl/lratio)*lratio
        nyr    = ny - nyl
        cymid  =  cylo + nyl*hy

        mptrnx = nodget()
        node(levelptr,mptrnx) = node(levelptr,mptr)
        node(levelptr,mptr)   = mptrnx

        rnode(cornyhi,mptr)   = cymid

        node(ndjhi,mptrnx) = node(ndjhi,mptr)
        node(ndjhi,mptr)   = node(ndjlo,mptr) + nyl - 1
        node(ndjlo,mptrnx) = node(ndjhi,mptr) + 1
        node(ndihi,mptrnx) = node(ndihi,mptr)
        node(ndilo,mptrnx) = node(ndilo,mptr)

        rnode(cornxlo,mptrnx)   = cxlo
        rnode(cornylo,mptrnx)   = cymid
        rnode(cornyhi,mptrnx)   = cyhi
        rnode(cornxhi,mptrnx)   = cxhi
        node(nestlevel,mptrnx)  = node(nestlevel,mptr)
        rnode(timemult,mptrnx)  = rnode(timemult,mptr)
        go to 10
c
c  grid ok - check the next
c
      else
        mptr = node(levelptr,mptr)
        if (mptr.ne.0) go to 10

      endif

      return

Here is the call graph for this function:

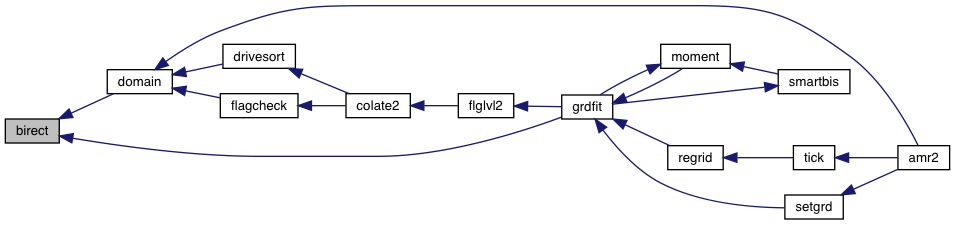

Here is the caller graph for this function:
