Functions/Subroutines
subroutine	flag2refine2 (mx, my, mbc, mbuff, meqn, maux, xlower, ylower, dx, dy, t, level, tolsp, q, aux, amrflags, DONTFLAG, DOFLAG)
	User routine to control flagging of points for refinement. More...

Function/Subroutine Documentation

◆ flag2refine2()

subroutine flag2refine2	(	integer, intent(in)	mx,
		integer, intent(in)	my,
		integer, intent(in)	mbc,
		integer, intent(in)	mbuff,
		integer, intent(in)	meqn,
		integer, intent(in)	maux,
		real(kind=8), intent(in)	xlower,
		real(kind=8), intent(in)	ylower,
		real(kind=8), intent(in)	dx,
		real(kind=8), intent(in)	dy,
		real(kind=8), intent(in)	t,
		integer, intent(in)	level,
		real(kind=8), intent(in)	tolsp,
		real(kind=8), dimension(meqn,1-mbc:mx+mbc,1-mbc:my+mbc), intent(in)	q,
		real(kind=8), dimension(maux,1-mbc:mx+mbc,1-mbc:my+mbc), intent(in)	aux,
		real(kind=8), dimension(1-mbuff:mx+mbuff,1-mbuff:my+mbuff), intent(inout)	amrflags,
		real(kind=8), intent(in)	DONTFLAG,
		real(kind=8), intent(in)	DOFLAG
	)

User routine to control flagging of points for refinement.

Default version computes spatial difference dq in each direction and for each component of q and flags any point where this is greater than the tolerance tolsp. This is consistent with what the routine errsp did in earlier versions of amrclaw (4.2 and before).

This routine can be copied to an application directory and modified to implement some other desired refinement criterion.

Points may also be flagged for refining based on a Richardson estimate of the error, obtained by comparing solutions on the current grid and a coarsened grid. Points are flagged if the estimated error is larger than the parameter tol in amr2ez.data, provided flag_richardson is .true., otherwise the coarsening and Richardson estimation is not performed! Points are flagged via Richardson in a separate routine.

Once points are flagged via this routine and/or Richardson, the subroutine flagregions is applied to check each point against the min_level and max_level of refinement specified in any "region" set by the user. So flags set here might be over-ruled by region constraints.

output: amrflags

Parameters

mx	number of cells in i direction
my	number of cells in j direction
mbc	width of ghost cell region
mbuff	width of buffer region
meqn	number of equations for the system
maux	number of auxiliary variables
xlower	x-coordinate of left physical boundary
ylower	y-coordinate of lower physical boundary
dx	spacing in i direction
dy	spacing in j direction
t	simulation time on this grid
level	AMR level of this grid
tolsp	tolerance specified by user in input file amr.data, used in default version of this routine as a tolerance for spatial differences
q	grid values including ghost cells (bndry vals at specified time have already been set, so can use ghost cell values too)
aux	auxiliary array on this grid patch
amrflags	array to be flagged with either the value DONTFLAG or DOFLAG for each cell. It is enlarged from grid size to include buffer regions around the grid.
DONTFLAG	value to be assigned to amrflags for cells that need no refinement
DOFLAG	value to be assigned to amrflags for cells that do need refinement

Definition at line 55 of file flag2refine2.f90.

Referenced by flagger(), and spest2().


     use regions_module

     implicit none

     ! Subroutine arguments
     integer, intent(in) :: mx,my,mbc,meqn,maux,level,mbuff
     real(kind=8), intent(in) :: xlower,ylower,dx,dy,t,tolsp

     real(kind=8), intent(in) :: q(meqn,1-mbc:mx+mbc,1-mbc:my+mbc)
     real(kind=8), intent(in) :: aux(maux,1-mbc:mx+mbc,1-mbc:my+mbc)

     ! Flagging
     real(kind=8),intent(inout) :: amrflags(1-mbuff:mx+mbuff,1-mbuff:my+mbuff)
     real(kind=8), intent(in) :: dontflag
     real(kind=8), intent(in) :: doflag

     logical :: allowflag
     external allowflag

     ! Locals
     integer :: i,j,m
     real(kind=8) :: x_c,y_c,x_low,y_low,x_hi,y_hi
     real(kind=8) :: dqi(meqn), dqj(meqn), dq(meqn)

     ! Initialize flags
     amrflags = dontflag

     ! Loop over interior points on this grid
     ! (i,j) grid cell is [x_low,x_hi] x [y_low,y_hi], cell center at (x_c,y_c)
     ! This information is not needed for the default flagging based on
     ! undivided differences, but might be needed in a user's version.
     ! Note that if you want to refine only in certain space-time regions,
     ! it may be easiest to use the "regions" feature.  The flags set here or
     ! in the Richardson error estimator are potentially modified by the
     ! min_level and max_level specified in any regions.

     y_loop: do j=1,my
         y_low = ylower + (j - 1) * dy
         y_c = ylower + (j - 0.5d0) * dy
         y_hi = ylower + j * dy

         x_loop: do i = 1,mx
             x_low = xlower + (i - 1) * dx
             x_c = xlower + (i - 0.5d0) * dx
             x_hi = xlower + i * dx

             ! -----------------------------------------------------------------
                 dq = 0.d0
                 dqi = abs(q(:,i+1,j) - q(:,i-1,j))
                 dqj = abs(q(:,i,j+1) - q(:,i,j-1))
                 dq = max(dq,dqi,dqj)

                 ! default checks all components of undivided difference:
                 do m=1,meqn
                     if (dq(m) > tolsp) then
                         amrflags(i,j) = doflag
                         cycle x_loop
                     endif
                 enddo

         enddo x_loop
     enddo y_loop

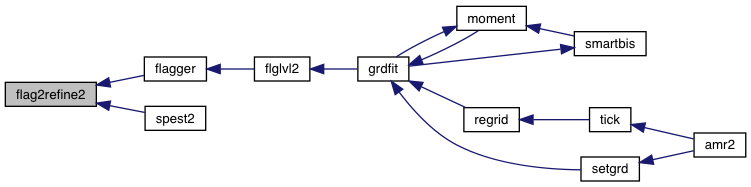

Here is the caller graph for this function:
