prefilp_orig.f90 File Reference

Go to the source code of this file.

Functions/Subroutines
recursive subroutine	prefilrecur (level, nvar, valbig, aux, naux, time, mitot, mjtot, nrowst, ncolst, ilo, ihi, jlo, jhi, fullGrid)
integer pure function	iadd (n, i, j)
integer pure function	iaddscratch (n, i, j)

Function/Subroutine Documentation

iadd()

integer pure function prefilrecur::iadd	(	integer, intent(in)	n,
		integer, intent(in)	i,
		integer, intent(in)	j
	)

Definition at line 188 of file prefilp_orig.f90.

References iadd().

        implicit none
        integer, intent(in) :: n, i, j
        iadd = locflip + n-1 + nvar*((j-1)*nr+i-1)

Here is the call graph for this function:

iaddscratch()

integer pure function prefilrecur::iaddscratch	(	integer, intent(in)	n,
		integer, intent(in)	i,
		integer, intent(in)	j
	)

Definition at line 194 of file prefilp_orig.f90.

References iaddscratch().

        implicit none
        integer, intent(in) :: n, i, j
        iaddscratch = n + nvar*((j-1)*nr+i-1)  ! no subtract 1

Here is the call graph for this function:

prefilrecur()

recursive subroutine prefilrecur	(	integer, intent(in)	level,
		integer, intent(in)	nvar,
		real(kind=8), dimension(nvar,mitot,mjtot), intent(inout)	valbig,
		real(kind=8), dimension(naux,mitot,mjtot), intent(inout)	aux,
		integer, intent(in)	naux,
		real(kind=8), intent(in)	time,
		integer, intent(in)	mitot,
		integer, intent(in)	mjtot,
		integer, intent(in)	nrowst,
		integer, intent(in)	ncolst,
		integer, intent(in)	ilo,
		integer, intent(in)	ihi,
		integer, intent(in)	jlo,
		integer, intent(in)	jhi,
		logical	fullGrid
	)

Definition at line 20 of file prefilp_orig.f90.

References filrecur(), amr_module::hxposs, amr_module::hyposs, iaddscratch(), amr_module::iregsz, amr_module::jregsz, amr_module::needs_to_be_set, amr_module::nghost, setaux(), amr_module::spheredom, amr_module::xlower, amr_module::xperdom, amr_module::ylower, and amr_module::yperdom.

    use amr_module, only: iregsz, jregsz, nghost, xlower, ylower, xperdom, yperdom
    use amr_module, only: spheredom, hxposs, hyposs, needs_to_be_set

    !for setaux timing
    use amr_module, only: timesetaux, timesetauxcpu

    implicit none

    ! Input
    integer, intent(in) :: level, nvar, naux, mitot, mjtot, nrowst, ncolst
    integer, intent(in) :: ilo,ihi,jlo,jhi
    real(kind=8), intent(in) :: time
    logical  :: fullgrid  ! true first time called, false for recursive coarse sub-patches

    ! Output
    real(kind=8), intent(in out) :: valbig(nvar,mitot,mjtot)
    real(kind=8), intent(in out) :: aux(naux,mitot,mjtot)

    ! Local storage
    integer :: i, j, ii, jj, ivar, nr, nc, ng, i1, i2, j1, j2, iputst, jputst
    integer :: jbump, iwrap1, iwrap2, jwrap1, tmp, locflip, rect(4)
    real(kind=8) :: xlwrap, ybwrap

    integer :: ist(3), iend(3), jst(3), jend(3), ishift(3), jshift(3)
    real(kind=8) :: scratch(max(mitot,mjtot)*nghost*nvar)
    real(kind=8) :: scratchaux(max(mitot,mjtot)*nghost*naux)

    !for timings
    integer :: clock_start, clock_finish, clock_rate
    real(kind=8) :: cpu_start, cpu_finish

!     # will divide patch into 9 possibilities (some empty):
!       x sticks out left, x interior, x sticks out right
!       same for y. for example, the max. would be
!       i from (ilo,-1), (0,iregsz(level)-1), (iregsz(level),ihi)

    if (xperdom) then
       ist(1)    = ilo
       ist(2)    = 0
       ist(3)    = iregsz(level)
       iend(1)   = -1
       iend(2)   = iregsz(level)-1
       iend(3)   = ihi
       ishift(1) = iregsz(level)
       ishift(2) = 0
       ishift(3) = -iregsz(level)
    else  ! if not periodic, set vals to only have nonnull intersection for interior regoin
       ist(1)    = iregsz(level)
       ist(2)    = ilo
       ist(3)    = iregsz(level)
       iend(1)   = -1
       iend(2)   = ihi
       iend(3)   = -1
       ishift(1) = 0
       ishift(2) = 0
       ishift(3) = 0
    endif

    if (yperdom .or. spheredom) then
       jst(1)  = jlo
       jst(2)  = 0
       jst(3)  = jregsz(level)
       jend(1) = -1
       jend(2) = jregsz(level)-1
       jend(3) = jhi
       jshift(1) = jregsz(level)
       jshift(2) = 0
       jshift(3) = -jregsz(level)
    else
       jst(1)    = jregsz(level)
       jst(2)    = jlo
       jst(3)    = jregsz(level)
       jend(1)   = -1
       jend(2)   = jhi
       jend(3)   = -1
       jshift(1) = 0
       jshift(2) = 0
       jshift(3) = 0
    endif

!   ## loop over the 9 regions (in 2D) of the patch - the interior is i=j=2 plus
!   ## the ghost cell regions.  If any parts stick out of domain and are periodic
!   ## map indices periodically, but stick the values in the correct place
!   ## in the orig grid (indicated by iputst,jputst.
!   ## if a region sticks out of domain  but is not periodic, not handled in (pre)-icall
!   ## but in setaux/bcamr (not called from here).
    do 20 i = 1, 3
        i1 = max(ilo,  ist(i))
        i2 = min(ihi, iend(i))
        if (i1 .gt. i2) go to 20
        do 10 j = 1, 3
            j1 = max(jlo,  jst(j))
            j2 = min(jhi, jend(j))

            ! part of patch in this region
            if (j1 <= j2) then

                ! there is something to fill. j=2 case is interior, no special
                ! mapping needed even if spherical bc
                if (.not. spheredom .or. j == 2 ) then
                    iputst = (i1 - ilo) + nrowst
                    jputst = (j1 - jlo) + ncolst

                    call filrecur(level,nvar,valbig,aux,naux,time,mitot,mjtot, &
                                  iputst,jputst,i1+ishift(i),i2+ishift(i),j1+jshift(j),j2+jshift(j),.false.)
                else
                    nr = i2 - i1 + 1
                    nc = j2 - j1 + 1
                    ng = 0    ! no ghost cells in this little patch. fill everything.

                    jbump = 0
                    if (j1 < 0)   jbump = abs(j1)  ! bump up so new bottom is 0
                    if (j2 >= jregsz(level)) jbump = -(j2+1-jregsz(level)) ! bump down

                    ! next 2 lines would take care of periodicity in x
                    iwrap1 = i1 + ishift(i)
                    iwrap2 = i2 + ishift(i)
                    ! next 2 lines take care of mapped sphere bcs
                    iwrap1 = iregsz(level) - iwrap1 -1
                    iwrap2 = iregsz(level) - iwrap2 -1
                    ! swap so that smaller one is left index, etc since mapping reflects
                    tmp = iwrap1
                    iwrap1 = iwrap2
                    iwrap2 = tmp

                    jwrap1 = j1 + jbump
                    xlwrap = xlower + iwrap1*hxposs(level)
                    ybwrap = ylower + jwrap1*hyposs(level)

                    if (naux>0) then
                        scratchaux = needs_to_be_set  !flag all cells with signal since dimensioned strangely

                        call system_clock(clock_start,clock_rate)
                        call cpu_time(cpu_start)
                        call setaux(ng,nr,nc,xlwrap,ybwrap,hxposs(level),hyposs(level),naux,scratchaux)
                        call system_clock(clock_finish,clock_rate)
                        call cpu_time(cpu_finish)
                        timesetaux = timesetaux + clock_finish - clock_start
                        timesetauxcpu = timesetauxcpu + cpu_finish - cpu_start
                    endif

                    rect = [iwrap1,iwrap2,j1+jbump,j2+jbump]
                    call filrecur(level,nvar,scratch,scratchaux,naux,time,nr, &
                                  nc,1,1,iwrap1,iwrap2,j1+jbump,j2+jbump,.false.)

                    ! copy back using weird mapping for spherical folding
                    do ii = i1, i2
                        do jj = j1, j2
                            ! write(dbugunit,'(" filling loc ",2i5," with ",2i5)') nrowst+ii-fill_indices(1),ncolst+jj-fill_indices(3),nr-(ii-i1),nc-jj+j1

                            do ivar = 1, nvar
                                valbig(ivar,nrowst+(ii-ilo),ncolst+(jj-jlo)) = &
                                    scratch(iaddscratch(ivar,nr-(ii-i1),nc-(jj-j1)))
                            end do
                            ! write(dbugunit,'(" new val is ",4e15.7)')(valbig(ivar,nrowst+(ii-fill_indices(1)),ncolst+(jj-fill_indices(3))),ivar=1,nvar)
                        end do
                    end do
                endif
            endif
 10     continue
 20   continue

contains

    integer pure function iadd(n,i,j)
        implicit none
        integer, intent(in) :: n, i, j
        iadd = locflip + n-1 + nvar*((j-1)*nr+i-1)
    end function iadd

    integer pure function iaddscratch(n,i,j)
        implicit none
        integer, intent(in) :: n, i, j
        iaddscratch = n + nvar*((j-1)*nr+i-1)  ! no subtract 1
    end function iaddscratch

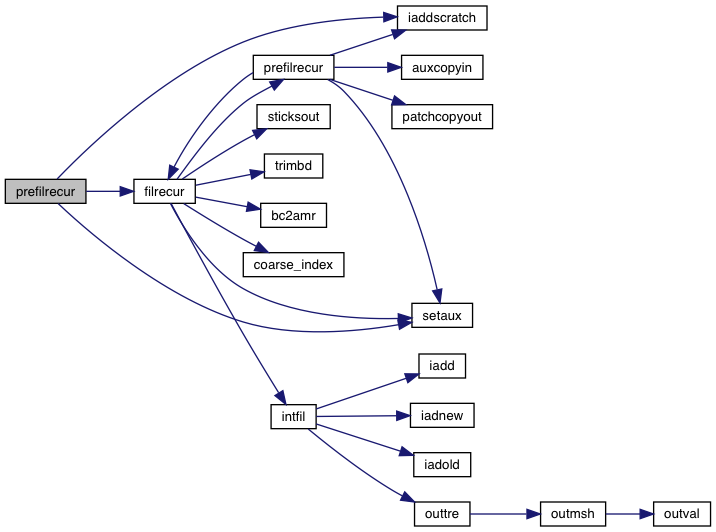

Here is the call graph for this function:
