setPhysBndryFlags.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	setphysbndryflags (iflags, ilo, ihi, jlo, jhi, mbuff, level)
	If grid borders the physical domain then set domain flags to 1 in buffer zone (which is outside the physical domain). More...

Function/Subroutine Documentation

setphysbndryflags()

subroutine setphysbndryflags	(	integer*1, dimension(ilo-mbuff:ihi+mbuff, jlo-mbuff:jhi+mbuff)	iflags,
			ilo,
			ihi,
			jlo,
			jhi,
			mbuff,
			level
	)

If grid borders the physical domain then set domain flags to 1 in buffer zone (which is outside the physical domain).

That way when shrink by 1 to get proper nested domain, you wont lose the first border cell of a grid

flag array uses 0-based index space

if periodic, then have to look elsewhere to see if last interior row/col that is flagged is ok. this is done in the calling routine that transfers flagged points to base grids

Parameters

iflags	array that stores the flags for this grid
ilo	global i index of left border of the grid
ihi	global i index of right border of the grid
jlo	global j index of lower border of the grid
jhi	global j index of upper border of the grid
mbuff	width of buffer zone
level	AMR level of the grid being flagged

Definition at line 29 of file setPhysBndryFlags.f.

References amr_module::iregsz, amr_module::jregsz, amr_module::xperdom, and amr_module::yperdom.

Referenced by griddomshrink(), and setdomflags().

       use amr_module
       implicit double precision (a-h, o-z)

       integer*1  iflags(ilo-mbuff:ihi+mbuff, jlo-mbuff:jhi+mbuff)

       if (ilo-mbuff .lt. 0 .and. .not. xperdom) then  ! grid extends out of left side of domain
c       set left flagged points to be ok
          do j = jlo-mbuff, jhi+mbuff
            do i = ilo-mbuff, -1
c             iflags(i,j) = iflags(0,j)   ! extend using whatever 1st col inside is
             iflags(i,j) = 1     ! set to 1 for bndry buffers that touch exterior domain
            end do
          end do
       endif

       if (ihi+mbuff .ge. iregsz(level) .and. .not. xperdom) then
c       set right flagged points to be ok
          do j = jlo-mbuff, jhi+mbuff
            do i = iregsz(level), ihi+mbuff
c             iflags(i,j) = iflags(iregsz(level)-1,j)
             iflags(i,j) = 1
            end do
          end do
       endif


       if (jlo-mbuff .lt. 0 .and. .not. yperdom) then
c       set bottom flagged points to be ok
         do j = jlo-mbuff, -1
           do i = ilo-mbuff, ihi+mbuff
c             iflags(i,j) = iflags(i,0)
             iflags(i,j) = 1
            end do
          end do
       endif

       if (jhi+mbuff .ge. jregsz(level) .and. .not. yperdom) then
c       set top flagged points to be ok
         do j = jregsz(level), jhi+mbuff
           do i = ilo-mbuff, ihi+mbuff
c             iflags(i,j) = iflags(i,jregsz(level)-1) ! extend using  last flag in domain
             iflags(i,j) = 1
            end do
          end do
       endif


       return

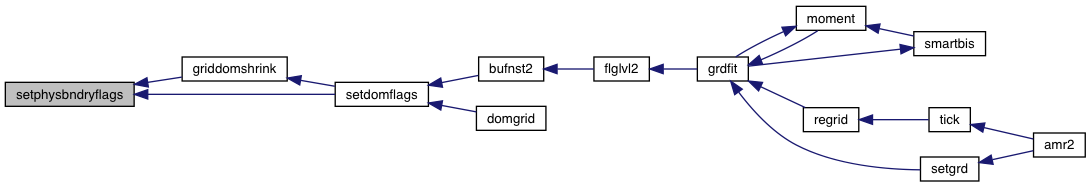

Here is the caller graph for this function:
