griddomshrink.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	griddomshrink (iflags2, ilo, ihi, jlo, jhi, mbuff, iflags, level)
	Shrink domain flags one cell for allowable properly nested domain This is needed even for lcheck = lbase. More...

Function/Subroutine Documentation

griddomshrink()

subroutine griddomshrink	(	integer*1, dimension(ilo-mbuff:ihi+mbuff,jlo-mbuff:jhi+mbuff)	iflags2,
			ilo,
			ihi,
			jlo,
			jhi,
			mbuff,
		integer*1, dimension (ilo-mbuff:ihi+mbuff,jlo-mbuff:jhi+mbuff)	iflags,
			level
	)

Shrink domain flags one cell for allowable properly nested domain This is needed even for lcheck = lbase.

More shrinking needed for finer levels. Flags starts in iflags2, should end in iflags array

The output iflags has flagged zone one cell smaller (shrinked) than input **iflags2.

The flags and indices, ilo, ihi, jlo and jhi are all with respect to level level index space

input:

• iflags2 output:
• iflags

Definition at line 26 of file griddomshrink.f.

References amr_module::dprint, amr_module::outunit, and setphysbndryflags().

Referenced by setdomflags().

      use amr_module
      implicit double precision (a-h, o-z)


      integer*1  iflags (ilo-mbuff:ihi+mbuff,jlo-mbuff:jhi+mbuff)
      integer*1  iflags2(ilo-mbuff:ihi+mbuff,jlo-mbuff:jhi+mbuff)



      if (dprint) then
        write(outunit,*)" from griddomshrink: on entry, iflags2"
        do 10 j = jhi+mbuff,jlo-mbuff,-1
        write(outunit,100)(iflags2(i,j),i=ilo-mbuff,ihi+mbuff)
 100    format(80i1)
 10     continue
      endif

c     NB this untagging alg. includes corner cells in determining proper
c     nesting.  not always nec., or always done
      do 40 j = jlo-mbuff+1,jhi+mbuff-1
      do 40 i = ilo-mbuff+1,ihi+mbuff-1
         iflags(i,j) = iflags2(i,j)
         if (iflags2(i  ,j  ) .le. 0 .or.
     1       iflags2(i+1,j  ) .le. 0 .or. iflags2(i-1,j  ) .le. 0 .or.
     2       iflags2(i+1,j+1) .le. 0 .or. iflags2(i-1,j+1) .le. 0 .or.
     3       iflags2(i  ,j-1) .le. 0 .or. iflags2(i  ,j+1) .le. 0 .or.
     4       iflags2(i+1,j-1) .le. 0 .or. iflags2(i-1,j-1) .le. 0) then
                 iflags(i,j) = 0
          endif
          iflags(ilo-mbuff,j) = 0   ! set last border to 0 instead of leaving uninitialized
          iflags(ihi+mbuff,j) = 0
 40   continue
      do i = ilo-mbuff,ihi+mbuff   ! finish zeroing out first and last col
         iflags(i,jlo-mbuff) = 0
         iflags(i,jhi+mbuff) = 0
      end do

c  dont need to handle periodicity here.  Setting of initial grid included enough room to shrink 1
c  for proper nesting.  If expand up then will need to add periodic domain flagging

c
c if border of domain touches a physical boundary then set domain in
c ghost cell as well
c
      call setphysbndryflags(iflags,ilo,ihi,jlo,jhi,mbuff,level)

 99   if (dprint) then
        write(outunit,*)" from griddomshrink: on exit, iflags"
        do 70 j = jhi+mbuff-1, jlo-mbuff+1, -1
        write(outunit,101)(iflags(i,j),i=ilo-mbuff+1,ihi+mbuff-1)
 101    format(80i1)
 70     continue
      endif

      return

Here is the call graph for this function:

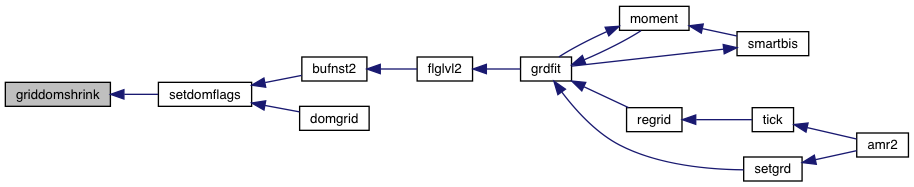

Here is the caller graph for this function:
