regrid.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	regrid (nvar, lbase, cut, naux, start_time)
subroutine	arrangegrids (level, numg)
	Sort all grids at level level. More...

Function/Subroutine Documentation

arrangegrids()

subroutine arrangegrids	(		level,
			numg
	)

Sort all grids at level level.

Put the most expensive grid in lstart(level) Cost is measured by number of cells. The linked list was also sorted such that the cost of grids decreases from list head to list tail

Definition at line 133 of file regrid.f.

References amr_module::levelptr, amr_module::lstart, amr_module::ndihi, amr_module::ndilo, amr_module::ndjhi, amr_module::ndjlo, amr_module::node, amr_module::null, and qsorti().

Referenced by domain(), regrid(), and setgrd().

c
      use amr_module
      implicit double precision (a-h,o-z)
      integer listgrids(numg), cost(numg), index(numg), prevptr
c
c   slow sort for now, putting most expensive grids first on lstart list
c   measure cost by number of cells
c
       mptr = lstart(level)
       do i = 1, numg
         listgrids(i) = mptr
         cost(i) =  (node(ndihi,mptr)-node(ndilo,mptr)+3) *
     1              (node(ndjhi,mptr)-node(ndjlo,mptr)+2)
         index(i) = i
         mptr = node(levelptr, mptr)
       end do
c
c        write(*,*)" before sorting"
c       write(*,*) index
c
       call  qsorti(index, numg, cost)

c       write(*,*)"after sorting"
c       write(*,*) index

c qsort returns in ascending order, repack in descending order
c grids can stay in place, just their levelptrs need to change
       lstart(level) = listgrids(index(numg))  ! last grid is most expensive
       prevptr = listgrids(index(numg))
       do i = 1, numg-1
          node(levelptr, prevptr) = listgrids(index(numg-i))
          prevptr = listgrids(index(numg-i))
       end do
       node(levelptr,prevptr) = null  !signal the last grid

       return

Here is the call graph for this function:

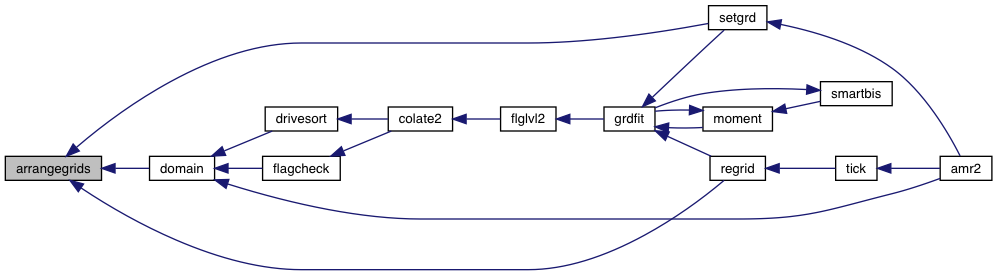

Here is the caller graph for this function:

regrid()

subroutine regrid	(		nvar,
			lbase,
			cut,
			naux,
			start_time
	)

Flag points on each grid with a level > = lbase. cluster them, and fit new subgrids around the clusters. the lbase grids stay fixed during regridding operation. when a parent grid has its error estimated, add its kid grid information to the error grid before clustering. (project) order of grid examination - all grids at the same level, then do the next coarser level.

Definition at line 5 of file regrid.f.

References arrangegrids(), amr_module::avenumgrids, gfixup(), grdfit(), amr_module::iregridcount, amr_module::levelptr, amr_module::lfine, amr_module::lstart, makebndrylist(), makegridlist(), amr_module::method, amr_module::mxnest, amr_module::ndihi, amr_module::ndilo, amr_module::ndjhi, amr_module::ndjlo, amr_module::newstl, amr_module::node, amr_module::numcells, amr_module::numgrids, amr_module::outunit, prepc(), prepf(), amr_module::rnode, amr_module::timegrdfit2, amr_module::timemult, and amr_module::verbosity_regrid.

Referenced by tick().

c
      use amr_module
      implicit double precision (a-h,o-z)
      integer newnumgrids(maxlv)
      integer clock_start2, clock_finish, clock_rate
c
c :::::::::::::::::::::::::::: REGRID :::::::::::::::::::::::::::::::

c
c input parameters:
c     lbase  = highest level that stays fixed during regridding
c     cutoff = criteria for measuring goodness of rect. fit.

c local variables:
c     lcheck = the level being examined.
c     lfnew  = finest grid to be. will replace lfine.

c global
c    mstart  = start of very coarsest grids.
c :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::
c
      verbosity_regrid = method(4)
      lcheck    = min0(lfine,mxnest-1)
      lfnew     = lbase
      do 10 i   = 1, mxnest
        newnumgrids(i) = 0
 10     newstl(i) = 0
      time      = rnode(timemult, lstart(lbase))
c
 20   if (lcheck .lt. lbase) go to 50
          call grdfit(lbase,lcheck,nvar,naux,cut,time,start_time)
          if (newstl(lcheck+1) .eq. 0) go to 40
          lfnew = max0(lcheck + 1,lfnew)
 40       continue
          lcheck = lcheck - 1
c
      go to 20
 50   continue
c
c  end of level loop
c
c  remaining tasks left in regridding:
c  1.  count number of new grids at each level
      maxnumnewgrids = 0   ! max over all levels. needed for dimensioning
      do lev = lbase+1,lfnew
          ngridcount = 0
          mptr = newstl(lev)
 52       if (mptr .eq. 0) go to 55
             ngridcount = ngridcount + 1
             mptr = node(levelptr,mptr)
             go to 52

 55       newnumgrids(lev) = ngridcount
          maxnumnewgrids = max(maxnumnewgrids,ngridcount)
      end do
c
c  2. interpolate storage for the new grids.  the starting pointers
c  for each level are in newstl. also reclaim some space before new
c  allocations.
      call system_clock(clock_start2,clock_rate)
      call gfixup(lbase,lfnew,nvar,naux,newnumgrids,maxnumnewgrids)
      call system_clock(clock_finish,clock_rate)
      timegrdfit2 = timegrdfit2 + clock_finish - clock_start2
c
c  3. merge data structures (newstl and lstart )
c  finish storage allocation, reclaim space, etc. set up boundary
c  flux conservation arrays
c
      do 60 level = lbase, lfine-1
        call prepf(level+1,nvar,naux)
        call prepc(level,nvar)
 60   continue
c
c  reset numgrids per level, needed for omp parallelization.
c  note that grids may have disappeared, so next loop resets to 0
c  if there are no grids from lfine+1 to mxnest
c
      do 72 levnew = lbase+1, mxnest
        mptr = lstart(levnew)
        ngridcount = 0
        ncells = 0
        do while (mptr .gt. 0)
           ngridcount = ngridcount + 1
           ncells = ncells + (node(ndihi,mptr)-node(ndilo,mptr)+1)
     .                     * (node(ndjhi,mptr)-node(ndjlo,mptr)+1)
           mptr = node(levelptr, mptr)
         end do
         numgrids(levnew) = ngridcount
         numcells(levnew) = ncells
         avenumgrids(levnew) = avenumgrids(levnew) + ngridcount
         iregridcount(levnew) = iregridcount(levnew) + 1
c        sort grids to first ones are the most work. this helps load
c        balancing, but doesn't help locality
         if (ngridcount .gt. 1) call arrangegrids(levnew,ngridcount)

         if (verbosity_regrid .ge. levnew) then
           write(*,100) ngridcount,ncells,levnew
           write(outunit,100) ngridcount,ncells,levnew
 100       format("there are ",i6," grids with ",i10,
     &            " cells at level ", i3)
         endif
72     continue
c
c      set up array of grids instead of recomputing at each step
       call makegridlist(lbase)
       do levnew = lbase+1, lfine
          call makebndrylist(levnew)   ! does one level at a time
       end do

      return

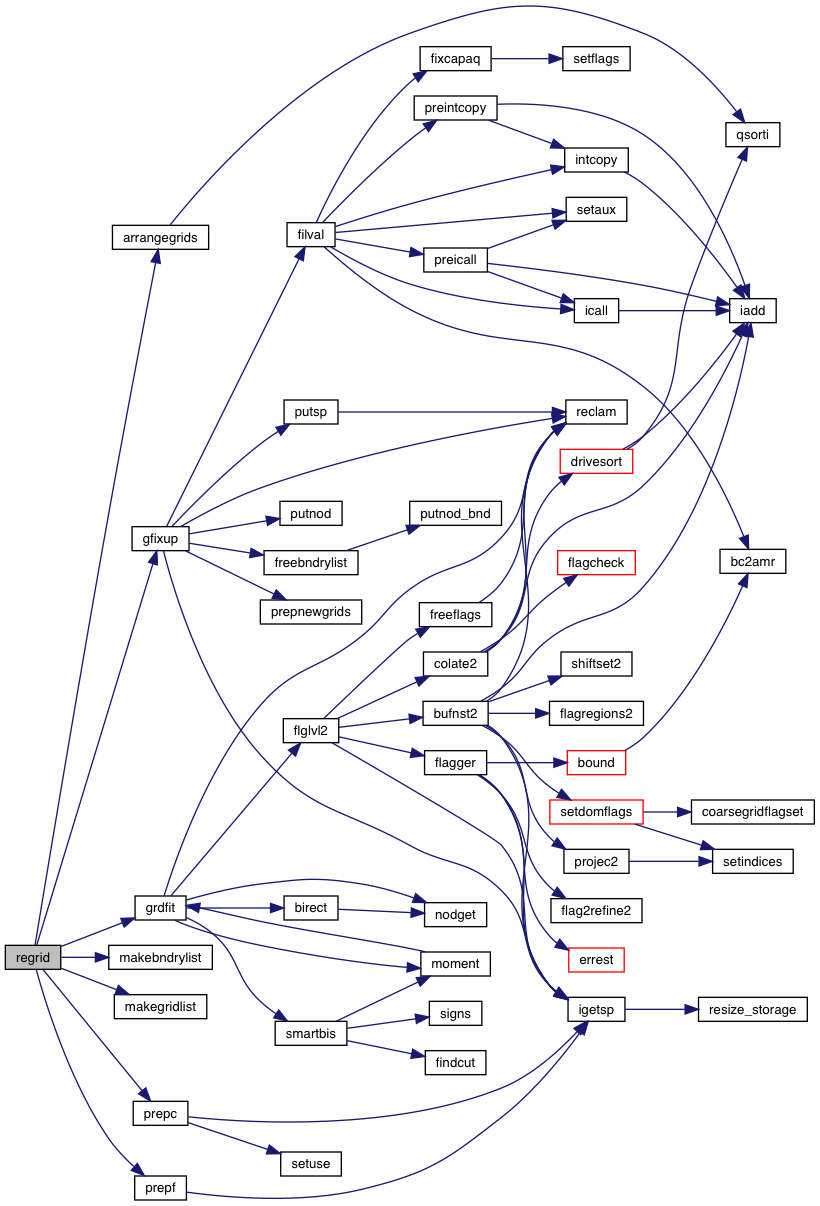

Here is the call graph for this function:

Here is the caller graph for this function:
