grdfit2.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	grdfit (lbase, lcheck, nvar, naux, cut, time, start_time)
	This subroutine is called by setgrd and regrid to actually fit the new grids on each level. More...

Function/Subroutine Documentation

grdfit()

subroutine grdfit	(		lbase,
			lcheck,
			nvar,
			naux,
			cut,
			time,
			start_time
	)

This subroutine is called by setgrd and regrid to actually fit the new grids on each level.

lcheck is the level being error estimated so that lcheck+1 will be the level of the new grids.

It generates all grids on level lcheck+1 and ensure proper nesting.

Parameters

lbase	base AMR level for current refinement, which stays fixed. Note that lbase is always less or equal to lcheck
lcheck	the level being error estimated so that lcheck+1 will be the level of the new grids.
nvar	number of equations for the system
naux	number of auxiliary variables
cut	efficiency threshold for the clustering algorithm
time	current simulation time
start_time	start time of current simulation

Definition at line 22 of file grdfit2.f.

References amr_module::alloc, birect(), amr_module::cornxhi, amr_module::cornxlo, amr_module::cornyhi, amr_module::cornylo, flglvl2(), amr_module::gprint, amr_module::hxposs, amr_module::hyposs, amr_module::iinfinity, amr_module::intratx, amr_module::intraty, amr_module::iregend, amr_module::iregst, amr_module::iregsz, amr_module::jregend, amr_module::jregst, amr_module::jregsz, amr_module::levelptr, amr_module::maxcl, moment(), amr_module::ndihi, amr_module::ndilo, amr_module::ndjhi, amr_module::ndjlo, amr_module::nestlevel, amr_module::newstl, amr_module::node, nodget(), amr_module::nsize, amr_module::null, amr_module::outunit, reclam(), amr_module::rnode, amr_module::rsize, smartbis(), amr_module::timeflglvl, amr_module::timegrdfitall, amr_module::timemult, amr_module::xlower, and amr_module::ylower.

Referenced by moment(), regrid(), and setgrd().

c
      use amr_module
      implicit double precision (a-h,o-z)
      integer clock_start, clock_finish, clock_rate
      integer clock_start1
c
      dimension  corner(nsize,maxcl)
      integer    numptc(maxcl), prvptr
      logical    fit,  cout
      logical    fit2, nestck2
      data       cout/.false./
c
c
      call system_clock(clock_start,clock_rate)


c ### initialize region start and end indices for new level grids
      iregst(lcheck+1) = iinfinity
      jregst(lcheck+1) = iinfinity
      iregend(lcheck+1) = -1
      jregend(lcheck+1) = -1

c     ## flag all grids at given level based on error ests.
c     ## npts is number of points actually colated - some
c     ## flagged points turned off due to proper nesting requirement.
c     ## (storage based on nptmax calculation however).

      call system_clock(clock_start1,clock_rate)
      call flglvl2(nvar,naux,lcheck,nptmax,index,lbase,npts,start_time)
      call system_clock(clock_finish,clock_rate)
      timeflglvl = timeflglvl + clock_finish - clock_start1

      if (npts .eq. 0) go to 99
c
      levnew    = lcheck + 1
      hxfine    = hxposs(levnew)
      hyfine    = hyposs(levnew)
c
c     ## call smart_bisect grid gen. to make the clusters
c        till each cluster ok. needs scratch space.
c
       idim = iregsz(lcheck)
       jdim = jregsz(lcheck)
c       lociscr = igetsp(idim+jdim)
c       locjscr = lociscr + idim
       call smartbis(alloc(index),npts,cut,numptc,nclust,lbase,
     2               corner,idim,jdim)
c     2               corner,alloc(lociscr),alloc(locjscr),idim,jdim)
c       call reclam(lociscr,idim+jdim)

       if (gprint) then
          write(outunit,103) nclust
          write(outunit,104) (icl, numptc(icl),icl=1,nclust)
 103      format(' ',i4,' clusters after bisect')
 104      format('         cluster ',i5,' has points: ',i8)
       endif
c
c     ##  for each cluster, fit the actual grid, set up some data structures
c
 50   ibase   =  0
      icl     =  1
      prvptr  =  null
c
 70   mnew      = nodget()
c       if (lcheck .eq. 2 .and. (mnew .ne. 6 .and. mnew .ne. 7)) go to 69
c       if (lcheck .eq. 1 .and. (mnew .ne. 3 .and. mnew .ne. 2 )) go to 69
 75   call  moment(node(1,mnew),alloc(index+2*ibase),numptc(icl),usage)

      if (gprint) write(outunit,100) icl,mnew,usage,numptc(icl)
100   format('         cluster ',i5,' new rect.',i5,
     1       ' usage ',e12.5,' with ',i5,' pts.')

      node(ndilo,mnew) = node(ndilo,mnew)*intratx(lcheck)
      node(ndjlo,mnew) = node(ndjlo,mnew)*intraty(lcheck)
      node(ndihi,mnew) = (node(ndihi,mnew)+1)*intratx(lcheck) - 1
      node(ndjhi,mnew) = (node(ndjhi,mnew)+1)*intraty(lcheck) - 1
      rnode(cornxlo,mnew)  = node(ndilo,mnew)*hxfine + xlower
      rnode(cornylo,mnew)  = node(ndjlo,mnew)*hyfine + ylower
      rnode(cornxhi,mnew)  = (node(ndihi,mnew)+1)*hxfine + xlower
      rnode(cornyhi,mnew)  = (node(ndjhi,mnew)+1)*hyfine + ylower
      node(nestlevel,mnew)     = levnew
      rnode(timemult,mnew)   = time

      if (gprint) write(outunit,101) (node(i,mnew),i=1,nsize),
     &                              (rnode(i,mnew),i=1,rsize)
 101  format(4i5,4i15,/,4i15,5i15,/,2i15,/,5e15.7)
c
c     ##  if new grid doesn't fit in base grid, nestck bisect it
c     ##  and returns 2 clusters where there used to be 1.
c
c 2/28/02 : Added naux to argument list; needed by call to outtre in nestck

      fit2 = nestck2(mnew,lbase,alloc(index+2*ibase),numptc(icl),numptc,
     1             icl,nclust,nvar, naux)
      if (.not. fit2) go to 75
c
c     ##  grid accepted. put in list.
      if (newstl(levnew) .eq. null) then
          newstl(levnew)  = mnew
      else
          node(levelptr,prvptr) = mnew
      endif
      prvptr = mnew
c     # keep track of min and max location of grids at this level
      iregst(levnew)  = min(iregst(levnew), node(ndilo,mnew))
      jregst(levnew)  = min(jregst(levnew), node(ndjlo,mnew))
      iregend(levnew) = max(iregend(levnew),node(ndihi,mnew))
      jregend(levnew) = max(jregend(levnew),node(ndjhi,mnew))

c     ##  on to next cluster
 69     ibase  = ibase + numptc(icl)
      icl = icl + 1
      if (icl .le. nclust) go to 70
c
c    ##  clean up. for all grids check final size.
      call birect(newstl(levnew))

 99   continue
c    ## may have npts 0 but array was allocated due to initially flagged points
c    ## that were not allowed for proper nesting or other reasons. in this case
c    ## the array was still allocated, so need to test further to see if colating
c    ## array space needs to be reclaimed
      if (nptmax .gt. 0) call reclam(index, 2*nptmax)
c
      call system_clock(clock_finish,clock_rate)
      timegrdfitall = timegrdfitall + clock_finish - clock_start

      return

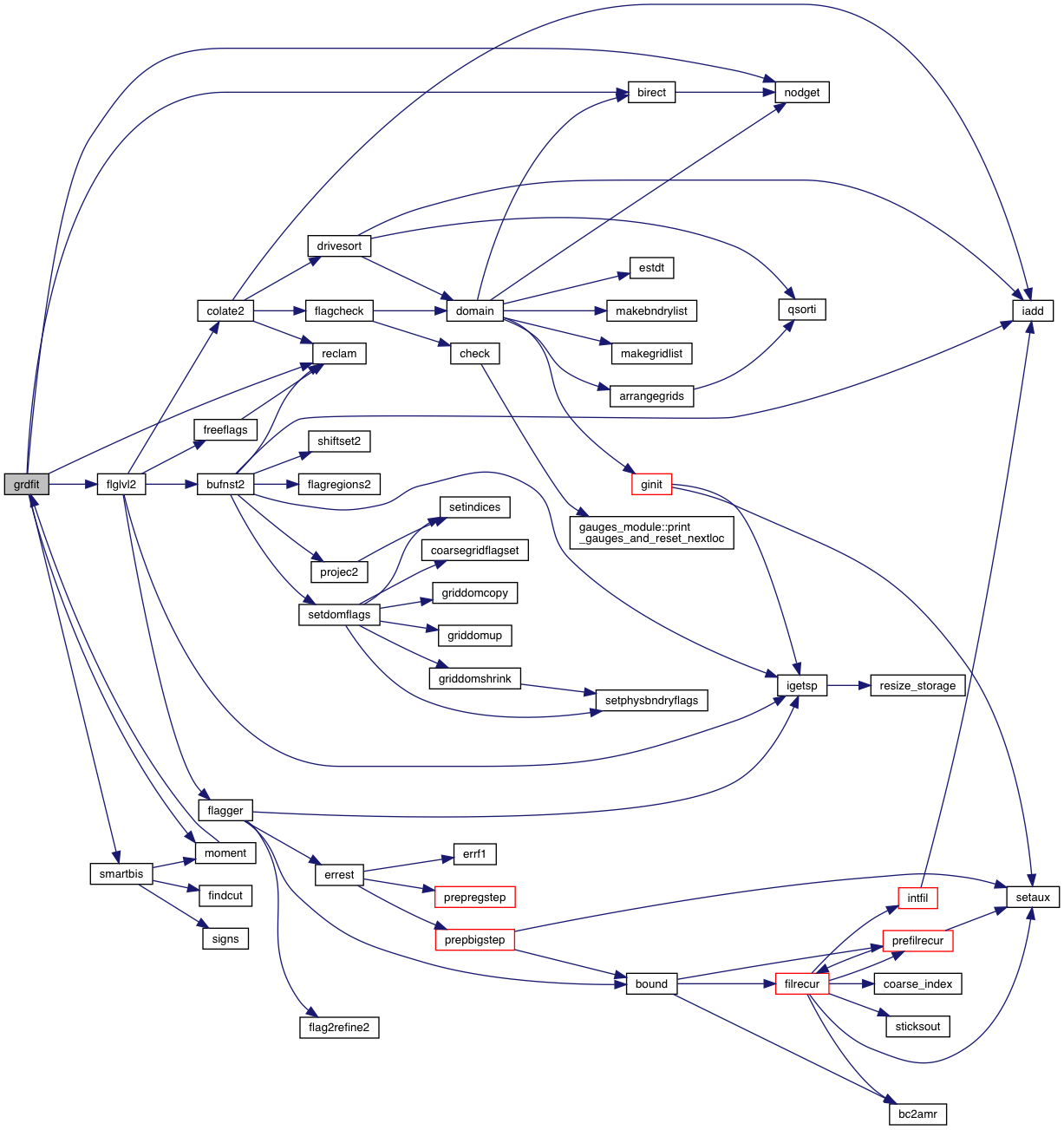

Here is the call graph for this function:

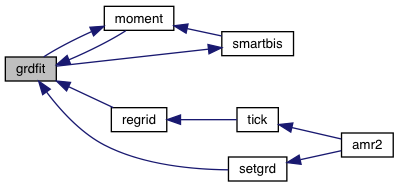

Here is the caller graph for this function:
