Gallery of GeoClaw applications¶
See also the Gallery of Jupyter notebooks.
Chile 2010 tsunami¶
Directory: `$CLAW/geoclaw/examples/tsunami/chile2010`
Simple model of the 2010 tsunami arising offshore Maule, Chile.
![../_images/geoclaw_examples_tsunami_chile2010__plots_frame0004fig0.png](../_images/geoclaw_examples_tsunami_chile2010__plots_frame0004fig0.png)
![../_images/geoclaw_examples_tsunami_chile2010__plots_frame0008fig0.png](../_images/geoclaw_examples_tsunami_chile2010__plots_frame0008fig0.png)
![../_images/geoclaw_examples_tsunami_chile2010__plots_frame0012fig0.png](../_images/geoclaw_examples_tsunami_chile2010__plots_frame0012fig0.png)
![../_images/geoclaw_examples_tsunami_chile2010__plots_gauge32412fig300.png](../_images/geoclaw_examples_tsunami_chile2010__plots_gauge32412fig300.png)
Adjoint AMR Flagging¶
Directory: `$CLAW/geoclaw/examples/tsunami/chile2010_adjoint`
Simple model of the 2010 tsunami using adjoint flagging.

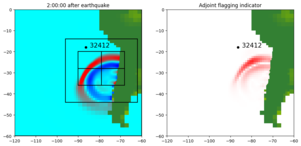

![../_images/geoclaw_examples_tsunami_chile2010_adjoint__plots_frame0008fig0.png](../_images/geoclaw_examples_tsunami_chile2010_adjoint__plots_frame0008fig0.png)

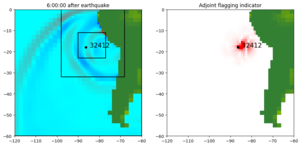

![../_images/geoclaw_examples_tsunami_chile2010_adjoint__plots_frame0024fig0.png](../_images/geoclaw_examples_tsunami_chile2010_adjoint__plots_frame0024fig0.png)
Adjoint problem¶
Directory: `$CLAW/geoclaw/examples/tsunami/chile2010_adjoint/adjoint`
Adjoint solution from DART 32412, used for adjoint flagging.
![../_images/geoclaw_examples_tsunami_chile2010_adjoint_adjoint__plots_frame0008fig0.png](../_images/geoclaw_examples_tsunami_chile2010_adjoint_adjoint__plots_frame0008fig0.png)
![../_images/geoclaw_examples_tsunami_chile2010_adjoint_adjoint__plots_frame0024fig0.png](../_images/geoclaw_examples_tsunami_chile2010_adjoint_adjoint__plots_frame0024fig0.png)
Radially-symmetric tsuanami in parabolic bowl¶
Directory: `$CLAW/geoclaw/examples/tsunami/bowl-radial`
Sample code where solution should be radially symmetric.
![../_images/geoclaw_examples_tsunami_bowl-radial__plots_frame0000fig0.png](../_images/geoclaw_examples_tsunami_bowl-radial__plots_frame0000fig0.png)
![../_images/geoclaw_examples_tsunami_bowl-radial__plots_frame0015fig0.png](../_images/geoclaw_examples_tsunami_bowl-radial__plots_frame0015fig0.png)

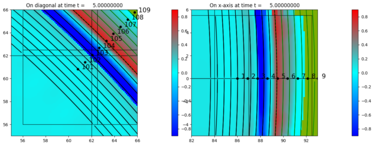

![../_images/geoclaw_examples_tsunami_bowl-radial__plots_frame0015fig10.png](../_images/geoclaw_examples_tsunami_bowl-radial__plots_frame0015fig10.png)
Sloshing water in parabolic bowl¶
Directory: `$CLAW/geoclaw/examples/tsunami/bowl-slosh`
Sample code with analytic solution.
![../_images/geoclaw_examples_tsunami_bowl-slosh__plots_frame0000fig0.png](../_images/geoclaw_examples_tsunami_bowl-slosh__plots_frame0000fig0.png)
![../_images/geoclaw_examples_tsunami_bowl-slosh__plots_frame0000fig1.png](../_images/geoclaw_examples_tsunami_bowl-slosh__plots_frame0000fig1.png)
![../_images/geoclaw_examples_tsunami_bowl-slosh__plots_frame0010fig0.png](../_images/geoclaw_examples_tsunami_bowl-slosh__plots_frame0010fig0.png)
![../_images/geoclaw_examples_tsunami_bowl-slosh__plots_frame0010fig1.png](../_images/geoclaw_examples_tsunami_bowl-slosh__plots_frame0010fig1.png)
Storm Surge¶
Directory: `$CLAW/geoclaw/examples/storm-surge/ike`
Storm surge simulation of Hurricane Ike (coarse grid)
![../_images/geoclaw_examples_storm-surge_ike__plots_frame0010fig1001.png](../_images/geoclaw_examples_storm-surge_ike__plots_frame0010fig1001.png)
![../_images/geoclaw_examples_storm-surge_ike__plots_frame0010fig1002.png](../_images/geoclaw_examples_storm-surge_ike__plots_frame0010fig1002.png)
![../_images/geoclaw_examples_storm-surge_ike__plots_frame0010fig1007.png](../_images/geoclaw_examples_storm-surge_ike__plots_frame0010fig1007.png)
Directory: `$CLAW/geoclaw/examples/storm-surge/isaac`
Storm surge simulation of Hurricane Isaac (coarse grid)
![../_images/geoclaw_examples_storm-surge_isaac__plots_frame0008fig1001.png](../_images/geoclaw_examples_storm-surge_isaac__plots_frame0008fig1001.png)
![../_images/geoclaw_examples_storm-surge_isaac__plots_frame0008fig1002.png](../_images/geoclaw_examples_storm-surge_isaac__plots_frame0008fig1002.png)
![../_images/geoclaw_examples_storm-surge_isaac__plots_frame0008fig1007.png](../_images/geoclaw_examples_storm-surge_isaac__plots_frame0008fig1007.png)
Multi-layer shallow water¶
Directory: `$CLAW/geoclaw/examples/multi-layer/plane_wave`

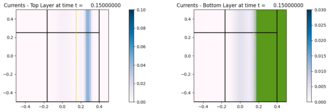

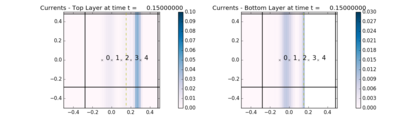

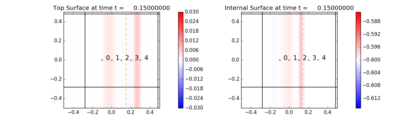

Plane wave hitting shelf with multi-layer equations

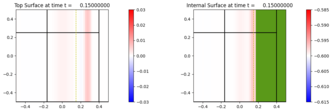

![../_images/geoclaw_examples_multi-layer_plane_wave__plots_frame0005fig1001.png](../_images/geoclaw_examples_multi-layer_plane_wave__plots_frame0005fig1001.png)
![../_images/geoclaw_examples_multi-layer_plane_wave__plots_frame0005fig1002.png](../_images/geoclaw_examples_multi-layer_plane_wave__plots_frame0005fig1002.png)
Directory: `$CLAW/geoclaw/examples/multi-layer/bowl-radial`
Multi-layer waves in a parabolic bowl

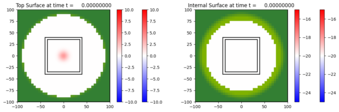

![../_images/geoclaw_examples_multi-layer_bowl-radial__plots_frame0000fig0.png](../_images/geoclaw_examples_multi-layer_bowl-radial__plots_frame0000fig0.png)
![../_images/geoclaw_examples_multi-layer_bowl-radial__plots_frame0000fig4.png](../_images/geoclaw_examples_multi-layer_bowl-radial__plots_frame0000fig4.png)
eta_init and force_dry¶
Directory: `$CLAW/geoclaw/examples/tsunami/eta_init_force_dry`
Tsunami with subsidence and dry regions below sea level.
![../_images/geoclaw_examples_tsunami_eta_init_force_dry__plots_frame0000fig11.png](../_images/geoclaw_examples_tsunami_eta_init_force_dry__plots_frame0000fig11.png)
![../_images/geoclaw_examples_tsunami_eta_init_force_dry__plots_frame0003fig11.png](../_images/geoclaw_examples_tsunami_eta_init_force_dry__plots_frame0003fig11.png)
![../_images/geoclaw_examples_tsunami_eta_init_force_dry__plots_frame0010fig11.png](../_images/geoclaw_examples_tsunami_eta_init_force_dry__plots_frame0010fig11.png)

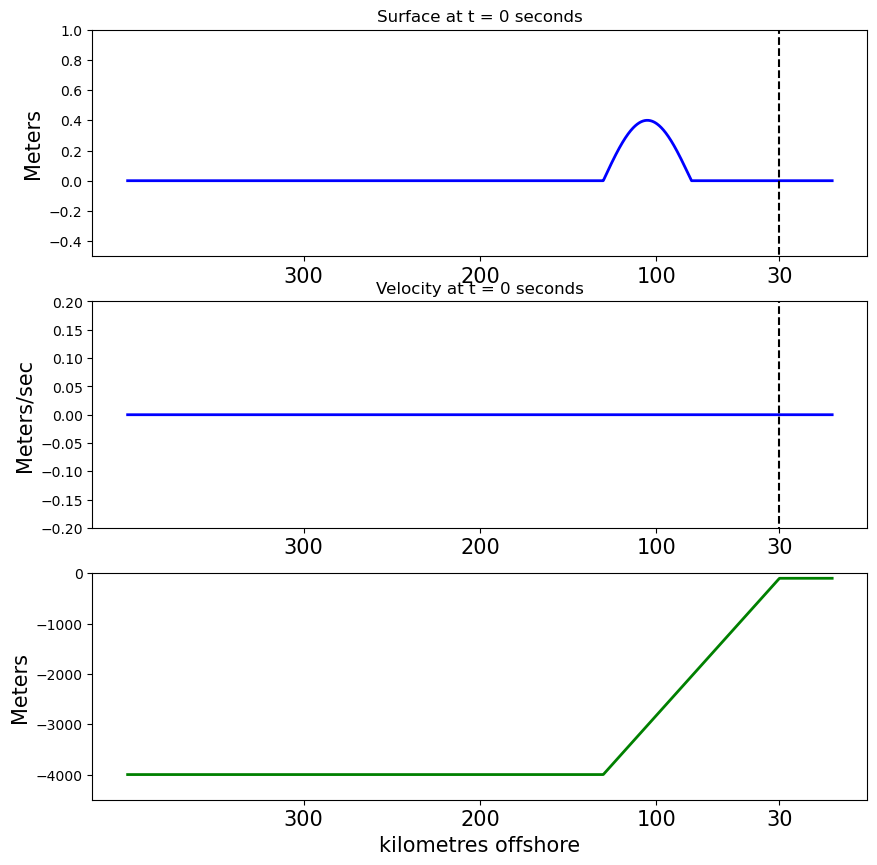

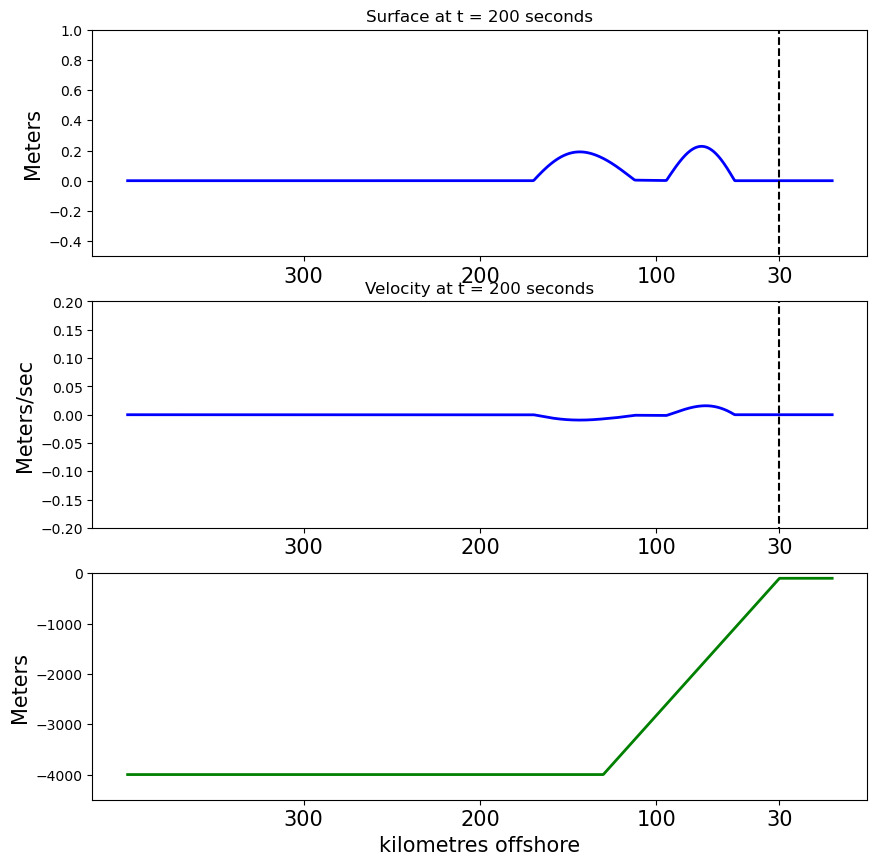

Directory: `$CLAW/apps/tsunami/shelf1d`
Tsunami interacting with 1d continental shelf
![../_images/apps_tsunami_shelf1d__plots_frame0000fig2.png](../_images/apps_tsunami_shelf1d__plots_frame0000fig2.png)
![../_images/apps_tsunami_shelf1d__plots_frame0002fig2.png](../_images/apps_tsunami_shelf1d__plots_frame0002fig2.png)
![../_images/apps_tsunami_shelf1d__plots_frame0005fig2.png](../_images/apps_tsunami_shelf1d__plots_frame0005fig2.png)
Directory: `$CLAW/apps/tsunami-examples/tohoku2011_hawaii_currents`
Tohoku tsunami and comparison with gauge data in Hawaii
![../_images/apps_tsunami-examples_tohoku2011_hawaii_currents__plots_frame0001fig1.png](../_images/apps_tsunami-examples_tohoku2011_hawaii_currents__plots_frame0001fig1.png)
![../_images/apps_tsunami-examples_tohoku2011_hawaii_currents__plots_frame0012fig1.png](../_images/apps_tsunami-examples_tohoku2011_hawaii_currents__plots_frame0012fig1.png)
![../_images/apps_tsunami-examples_tohoku2011_hawaii_currents__plots_gauge5680fig300.png](../_images/apps_tsunami-examples_tohoku2011_hawaii_currents__plots_gauge5680fig300.png)
fgmax examples¶
Directory: `$CLAW/geoclaw/examples/tsunami/radial-ocean-island-fgmax`
Radial ocean and island test problem from AWR 2011 paper.
![../_images/geoclaw_examples_tsunami_radial-ocean-island-fgmax__plots_frame0005fig7.png](../_images/geoclaw_examples_tsunami_radial-ocean-island-fgmax__plots_frame0005fig7.png)
![../_images/geoclaw_examples_tsunami_radial-ocean-island-fgmax__plots_frame0006fig7.png](../_images/geoclaw_examples_tsunami_radial-ocean-island-fgmax__plots_frame0006fig7.png)
![../_images/geoclaw_examples_tsunami_radial-ocean-island-fgmax__plots_gauge0002fig300.png](../_images/geoclaw_examples_tsunami_radial-ocean-island-fgmax__plots_gauge0002fig300.png)
Directory: `$CLAW/geoclaw/examples/tsunami/chile2010_fgmax-fgout`
Chile 2010 wave heights and arrival times
![../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_frame0001fig0.png](../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_frame0001fig0.png)
![../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_frame0002fig0.png](../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_frame0002fig0.png)
![../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_amplitude_times.png](../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_amplitude_times.png)
fgout examples¶
Directory: `$CLAW/geoclaw/examples/tsunami/chile2010_fgmax-fgout`
Chile 2010 output on fgout grid and animation
![../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_fgout_fgout0001frame0009fig0.png](../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_fgout_fgout0001frame0009fig0.png)
![../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_fgout_fgout0001frame0017fig0.png](../_images/geoclaw_examples_tsunami_chile2010_fgmax-fgout__plots_fgout_fgout0001frame0017fig0.png)
Lagrangian gauges¶
Directory: `$CLAW/geoclaw/examples/tsunami/island-particles`
Lagrangian gauges allow particle tracking
![../_images/geoclaw_examples_tsunami_island-particles__plots_frame0007fig0.png](../_images/geoclaw_examples_tsunami_island-particles__plots_frame0007fig0.png)
![../_images/geoclaw_examples_tsunami_island-particles__plots_frame0025fig0.png](../_images/geoclaw_examples_tsunami_island-particles__plots_frame0025fig0.png)
Boussinesq equations¶
Directory: `$CLAW/geoclaw/examples/bouss/radial_flat`
Dispersive SGN Boussinesq-type equations with Gaussian initial data on flat topograpy, radially symmetric
![../_images/geoclaw_examples_bouss_radial_flat__plots_frame0007fig20.png](../_images/geoclaw_examples_bouss_radial_flat__plots_frame0007fig20.png)
![../_images/geoclaw_examples_bouss_radial_flat__plots_frame0015fig20.png](../_images/geoclaw_examples_bouss_radial_flat__plots_frame0015fig20.png)
1D GeoClaw - shallow water equations¶
Directory: `$CLAW/geoclaw/examples/1d_classic/ocean_shelf_beach`
Wave moving from ocean onto continental shelf and up a beach
![../_images/geoclaw_examples_1d_classic_ocean_shelf_beach__plots_frame0043fig0.png](../_images/geoclaw_examples_1d_classic_ocean_shelf_beach__plots_frame0043fig0.png)
![../_images/geoclaw_examples_1d_classic_ocean_shelf_beach__plots_frame0049fig1.png](../_images/geoclaw_examples_1d_classic_ocean_shelf_beach__plots_frame0049fig1.png)
Directory: `$CLAW/geoclaw/examples/1d_classic/okada_dtopo`
Tsunami generated by earthquake using the Okada model in 1D
![../_images/geoclaw_examples_1d_classic_okada_dtopo__plots_frame0007fig0.png](../_images/geoclaw_examples_1d_classic_okada_dtopo__plots_frame0007fig0.png)
![../_images/geoclaw_examples_1d_classic_okada_dtopo__plots_frame0026fig1.png](../_images/geoclaw_examples_1d_classic_okada_dtopo__plots_frame0026fig1.png)
Directory: `$CLAW/geoclaw/examples/1d_classic/shoaling_qinit_box`
Wave shoaling example with unit box initial data
![../_images/geoclaw_examples_1d_classic_shoaling_qinit_box__plots_frame0000fig0.png](../_images/geoclaw_examples_1d_classic_shoaling_qinit_box__plots_frame0000fig0.png)
![../_images/geoclaw_examples_1d_classic_shoaling_qinit_box__plots_frame0006fig0.png](../_images/geoclaw_examples_1d_classic_shoaling_qinit_box__plots_frame0006fig0.png)
Directory: `$CLAW/geoclaw/examples/1d_classic/shoaling_qinit_step`
Wave shoaling example with step function initial data
![../_images/geoclaw_examples_1d_classic_shoaling_qinit_step__plots_frame0000fig0.png](../_images/geoclaw_examples_1d_classic_shoaling_qinit_step__plots_frame0000fig0.png)
![../_images/geoclaw_examples_1d_classic_shoaling_qinit_step__plots_frame0006fig0.png](../_images/geoclaw_examples_1d_classic_shoaling_qinit_step__plots_frame0006fig0.png)
1D GeoClaw - Boussinesq equations¶
Directory: `$CLAW/geoclaw/examples/1d_classic/bouss_wavetank_matsuyama`
Wave tank simulation with comparison to experiment in paper of Matsuyama, et al. 2007
![../_images/geoclaw_examples_1d_classic_bouss_wavetank_matsuyama__plots_frame0024fig0.png](../_images/geoclaw_examples_1d_classic_bouss_wavetank_matsuyama__plots_frame0024fig0.png)
![../_images/geoclaw_examples_1d_classic_bouss_wavetank_matsuyama__plots_frame0031fig0.png](../_images/geoclaw_examples_1d_classic_bouss_wavetank_matsuyama__plots_frame0031fig0.png)
Directory: `$CLAW/geoclaw/examples/1d_classic/bouss_wavetank_usace`
Wave tank simulation with comparison to experiment done by US Army Corps of Engineers
![../_images/geoclaw_examples_1d_classic_bouss_wavetank_usace__plots_frame0000fig0.png](../_images/geoclaw_examples_1d_classic_bouss_wavetank_usace__plots_frame0000fig0.png)
![../_images/geoclaw_examples_1d_classic_bouss_wavetank_usace__plots_frame0038fig0.png](../_images/geoclaw_examples_1d_classic_bouss_wavetank_usace__plots_frame0038fig0.png)
