bc2amr.f File Reference

Go to the source code of this file.

Functions/Subroutines
subroutine	bc2amr (val, aux, nrow, ncol, meqn, naux,
	Take a grid patch with mesh widths hx,hy, of dimensions nrow by ncol, and set the values of any piece of of the patch which extends outside the physical domain using the boundary conditions. More...

Function/Subroutine Documentation

bc2amr()

subroutine bc2amr	(	real*8, dimension(meqn,nrow,ncol)	val,
		real*8, dimension(naux,nrow,ncol)	aux,
		integer	nrow,
		integer	ncol,
		integer	meqn,
		integer	naux
	)

Take a grid patch with mesh widths hx,hy, of dimensions nrow by ncol, and set the values of any piece of of the patch which extends outside the physical domain using the boundary conditions.

Standard boundary condition choices for amr2ez in clawpack

At each boundary k = 1 (left), 2 (right), 3 (bottom), 4 (top):

mthbc(k) =

• 0 for user-supplied BC's (must be inserted!)
• 1 for zero-order extrapolation
• 2 for periodic boundary conditions
• 3 for solid walls, assuming this can be implemented by reflecting the data about the boundary and then negating the 2'nd (for k=1,2) or 3'rd (for k=3,4) component of q.
• 5 for sphere bcs (left half maps to right half of same side, and vice versa), as if domain folded in half

The corners of the grid patch are at (xlo_patch,ylo_patch) – lower left corner (xhi_patch,yhi_patch) – upper right corner

The physical domain itself is a rectangle bounded by (xlower,ylower) – lower left corner (xupper,yupper) – upper right corner Any cells that lie outside the physical domain are ghost cells whose values should be set in this routine. This is tested for by comparing xlo_patch with xlower to see if values need to be set at the left and similarly at the other boundaries. Patches are guaranteed to have at least 1 row of cells filled with interior values so it is possible to extrapolate. Fix trimbd() if you want more than 1 row pre-set.

Make sure the order the boundaries are specified is correct so that diagonal corner cells are also properly taken care of.

Periodic boundaries are set before calling this routine, so if the domain is periodic in one direction only you can safely extrapolate in the other direction.

Don't overwrite ghost cells in periodic directions!

Parameters

val	data array for solution (cover the whole grid msrc)
aux	data array for auxiliary variables
nrow	number of cells in i direction on this grid
ncol	number of cells in j direction on this grid
meqn	number of equations for the system
naux	number of auxiliary variables
hx	spacing (mesh size) in i direction
hy	spacing (mesh size) in j direction
level	AMR level of this grid
time	setting ghost cell values at time time
xlo_patch	left bound of the input grid
xhi_patch	right bound of the input grid
ylo_patch	lower bound of the input grid
yhi_patch	upper bound of the input grid

Definition at line 88 of file bc2amr.f.

References amr_module::mthbc, amr_module::spheredom, amr_module::xlower, amr_module::xperdom, amr_module::xupper, amr_module::ylower, amr_module::yperdom, and amr_module::yupper.

Referenced by bound(), filrecur(), filval(), and saveqc().

     1                  hx, hy, level, time,
     2                  xlo_patch, xhi_patch, ylo_patch,yhi_patch)

c
c

      use amr_module, only: mthbc,xlower,ylower,xupper,yupper
      use amr_module, only: xperdom,yperdom,spheredom

      implicit none

      real*8  val(meqn,nrow,ncol), aux(naux,nrow,ncol)
      integer nrow,ncol,meqn,naux,level
      real*8  hx,hy,time, hxmarg, hymarg
      real*8  xlo_patch,xhi_patch,ylo_patch,yhi_patch
      integer nxl,nxr,ibeg,nyb,nyt,jbeg,i,j,m


      hxmarg = hx*.01
      hymarg = hy*.01

      if (xperdom .and. (yperdom .or. spheredom)) go to 499
c
c
c-------------------------------------------------------
c     # left boundary:
c-------------------------------------------------------
      if (xlo_patch .ge. xlower-hxmarg) then
c        # not a physical boundary -- no cells at this edge lies
c        # outside the physical bndry.
c        # values are set elsewhere in amr code.
         go to 199
         endif
c
c     # number of grid cells from this patch lying outside physical domain:
      nxl = (xlower+hxmarg-xlo_patch)/hx
c
      go to (100,110,120,130) mthbc(1)+1
c
  100 continue
c     # user-specified boundary conditions go here in place of error output
      write(6,*)
     &   '*** ERROR *** mthbc(1)=0 and no BCs specified in bc2amr'
      stop
      go to 199
c
  110 continue
c     # zero-order extrapolation:
      do 115 j = 1,ncol
         do 115 i=1,nxl
            do 115 m=1,meqn
               val(m,i,j) = val(m,nxl+1,j)
  115       continue
      go to 199

  120 continue
c     # periodic:   handled elsewhere in amr
      go to 199

  130 continue
c     # solid wall (assumes 2'nd component is velocity or momentum in x):
      do 135 j = 1,ncol
         do 135 i=1,nxl
            do 135 m=1,meqn
               val(m,i,j) = val(m,2*nxl+1-i,j)
  135       continue
c     # negate the normal velocity:
      do 136 j = 1,ncol
         do 136 i=1,nxl
            val(2,i,j) = -val(2,i,j)
  136    continue
      go to 199

  199 continue
c
c-------------------------------------------------------
c     # right boundary:
c-------------------------------------------------------
      if (xhi_patch .le. xupper+hxmarg) then
c        # not a physical boundary --  no cells at this edge lies
c        # outside the physical bndry.
c        # values are set elsewhere in amr code.
         go to 299
         endif
c
c     # number of grid cells lying outside physical domain:
      nxr = (xhi_patch - xupper + hxmarg)/hx
      ibeg = max0(nrow-nxr+1, 1)
c
      go to (200,210,220,230) mthbc(2)+1
c
  200 continue
c     # user-specified boundary conditions go here in place of error output
      write(6,*)
     &   '*** ERROR *** mthbc(2)=0 and no BCs specified in bc2amr'
      stop
      go to 299

  210 continue
c     # zero-order extrapolation:
      do 215 j = 1,ncol
         do 215 i=ibeg,nrow
            do 215 m=1,meqn
               val(m,i,j) = val(m,ibeg-1,j)
  215       continue
      go to 299

  220 continue
c     # periodic:   handled elsewhere in amr
      go to 299

  230 continue
c     # solid wall (assumes 2'nd component is velocity or momentum in x):
      do 235 j = 1,ncol
         do 235 i=ibeg,nrow
            do 235 m=1,meqn
               val(m,i,j) = val(m,2*ibeg-1-i,j)
  235       continue
c     # negate the normal velocity:
      do 236 j = 1,ncol
         do 236 i=ibeg,nrow
            val(2,i,j) = -val(2,i,j)
  236    continue
      go to 299

  299 continue
c
c-------------------------------------------------------
c     # bottom boundary:
c-------------------------------------------------------
      if (ylo_patch .ge. ylower-hymarg) then
c        # not a physical boundary -- no cells at this edge lies
c        # outside the physical bndry.
c        # values are set elsewhere in amr code.
         go to 399
         endif
c
c     # number of grid cells lying outside physical domain:
      nyb = (ylower+hymarg-ylo_patch)/hy
c
      go to (300,310,320,330) mthbc(3)+1
c
  300 continue
c     # user-specified boundary conditions go here in place of error output
      write(6,*)
     &   '*** ERROR *** mthbc(3)=0 and no BCs specified in bc2amr'
      stop
      go to 399
c
  310 continue
c     # zero-order extrapolation:
      do 315 j=1,nyb
         do 315 i=1,nrow
            do 315 m=1,meqn
                val(m,i,j) = val(m,i,nyb+1)
  315       continue
      go to 399

  320 continue
c     # periodic:   handled elsewhere in amr
      go to 399

  330 continue
c     # solid wall (assumes 3'rd component is velocity or momentum in y):
      do 335 j=1,nyb
         do 335 i=1,nrow
            do 335 m=1,meqn
               val(m,i,j) =  val(m,i,2*nyb+1-j)
  335       continue
c     # negate the normal velocity:
      do 336 j=1,nyb
         do 336 i=1,nrow
            val(3,i,j) = -val(3,i,j)
  336    continue
      go to 399

  399 continue
c
c-------------------------------------------------------
c     # top boundary:
c-------------------------------------------------------
      if (yhi_patch .le. yupper+hymarg) then
c        # not a physical boundary --  no cells at this edge lies
c        # outside the physical bndry.
c        # values are set elsewhere in amr code.
         go to 499
         endif
c
c     # number of grid cells lying outside physical domain:
      nyt = (yhi_patch - yupper + hymarg)/hy
      jbeg = max0(ncol-nyt+1, 1)
c
      go to (400,410,420,430) mthbc(4)+1
c
  400 continue
c     # user-specified boundary conditions go here in place of error output
      write(6,*)
     &   '*** ERROR *** mthbc(4)=0 and no BCs specified in bc2amr'
      stop
      go to 499

  410 continue
c     # zero-order extrapolation:
      do 415 j=jbeg,ncol
         do 415 i=1,nrow
            do 415 m=1,meqn
               val(m,i,j) =  val(m,i,jbeg-1)
  415       continue
      go to 499

  420 continue
c     # periodic:   handled elsewhere in amr
      go to 499

  430 continue
c     # solid wall (assumes 3'rd component is velocity or momentum in y):
      do 435 j=jbeg,ncol
         do 435 i=1,nrow
            do 435 m=1,meqn
               val(m,i,j) =  val(m,i,2*jbeg-1-j)
  435       continue
c     # negate the normal velocity:
      do 436 j=jbeg,ncol
         do 436 i=1,nrow
            val(3,i,j) = -val(3,i,j)
  436    continue
      go to 499

  499 continue

      return

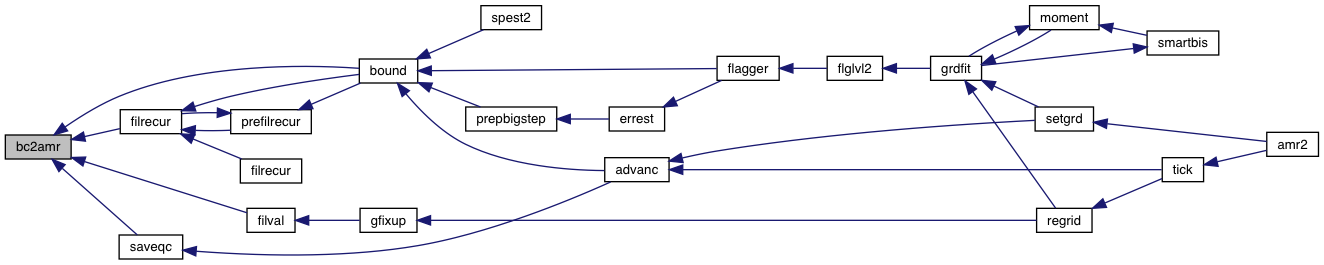

Here is the caller graph for this function:
